FIT MODEL
For Ford Transit, 2006-2013
For Ford Fiesta, 2006-2013

NOTICE
– Compatible with Steering Wheel Controls.

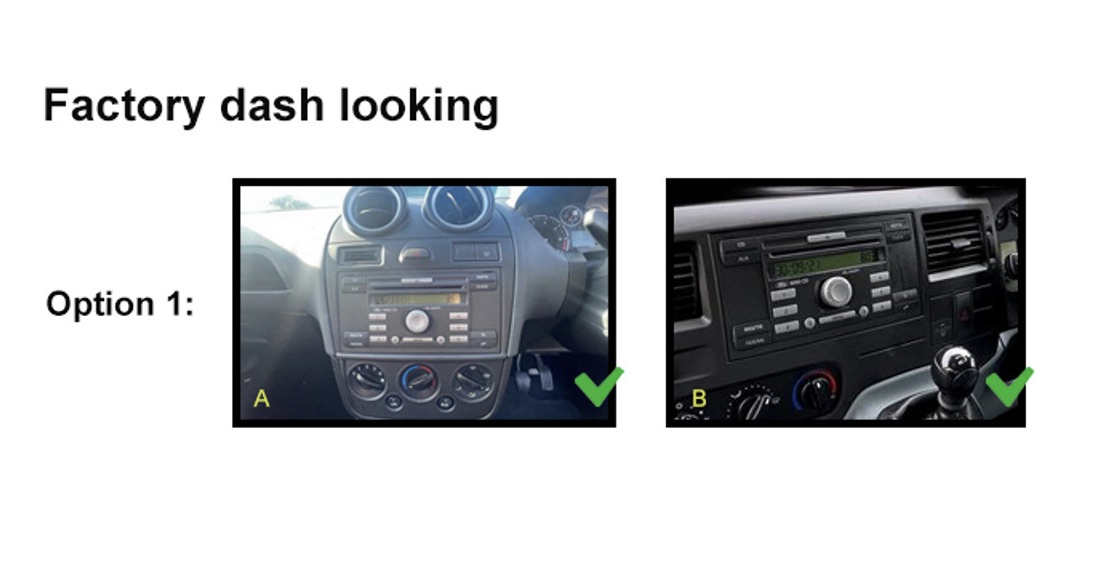

– Compatible with Option 1 dash looking.
– Compatible with AHD aftermarket reverse camera.
– To help us get the correct product, please email us an image of your dashboard after purchase. Please include the vehicle’s year and model. Email to info@sevensmartauto.com.au

MAIN FEATURES

-Wireless Apple CarPlay
The Ultimate Co-Pilot. Enjoy CarPlay without cable. CarPlay is a more innovative, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favourite music. All on your car’s built-in display. With iOS, CarPlay introduces all-new APP categories and customised wallpapers for your CarPlay Dashboard.

-Wireless Android Auto (WIRED for some specific phone brand)
Pair your phone without cable. Now, hit the road. Pair your phone with a car display — your Android APPS show up onscreen, just like that. Tap to get driving directions or talk to send a text. Even call hands-free. Android Auto is made to help you focus on the road. And have fun along the way. Just plug in and go!

FIT MODEL

• For Ford Transit, 2006-2013
• For Ford Fiesta, 2006-2013
• Compatible with Steering Wheel Controls.
• Compatible with AHD aftermarket reverse camera.
• To help us get the correct product, please email us an image of your dashboard after purchase; please include the vehicle year and model. Email to info@sevensmartauto.com.au

BLUETOOTH
Communication system BT: 5.0 +EDR
Frequency band: 2.4GHZ
Max Range: 5m

RADIO
FM Frequency: 87.5-108.0MHZ
AM Frequency: 522-1620KHZ
Presets: 18 FM,12 AM

AUDIO
Max Power: 4×50W
Pre-output(V): 4V/10KΩ
Pre-output impedance: ≤600Ω
Speaker impedance: 4-8Ω
AUX-L (at the back of the unit)
AUX-R (at the back of the unit)

VIDEO
R-CAM: Reverse Camera Video Input (at the back of the unit)
V-IN: Extra Video Input (at the back of the unit)
V-OUT1: Video Output 1 (at the back of the unit)
V-OUT2: Video Output 2 (at the back of the unit)

USB INTERFACE
CP/AA: USB Connection for CarPlay / Android Auto (at the back of the unit)
USB: USB Connection for Music or Video (at the back of the unit)

OTHER INPUT AT THE BACK OF THE UNIT
ANT: Radio Antenna Input (at the back of the unit)
MIC: Microphone Input (at the back of the unit)

RCA CABLE
FL_OUT: Front Left Speaker Output
FR_OUT: Front Right Speaker Output
RL_OUT: Rear Left Speaker Output
RR_OUT: Rear Right Speaker Output
SUB_OUT: Subwoofer Output
UART_RX/UART_TX: Canbus Connector
PARK: Parking Brake
AMP: Amplifier Control

PACKAGE INCLUDED
1 x Nakamichi Head Unit with Fascia
1 x Main Harness
1 x RCA Cable
1 x User Manual
1 x Microphone
2 x USB Cable
* For different car models, it might need other accessories packages. It is NORMAL if they are not the same as including the listing.

GENERAL SPECIFICATION
TFT Screen Size: 9″ or 10″
Display Resolution: 1240×600
Contrast Ratio: 500
Brightness: 500nit
Operation Voltage: 14.4V(10.5-16V)
USB Readable/chargeable: (5±0.25V/1A)
Video Format: H264/MP4/AVI/MKV/FLV
Audio Format: MP3/APE/AAC/FLAC

If you need an installation service (an installation fee will be charged) to help you fit this device onto your car, please click the link below to book by filling a form at the end of the page into our store in Sydney .

Link at: https://www.sevensmartauto.com.au/services/carplay-android-auto-installation/
